Medium-Voltage Pad-Mounted Transformers

Dead-front, liquid-filled, 300–3,000 kVA, 5–34.5 kV class. Loop-feed or radial-feed. 5-year warranty, 24–36 week lead time from PO confirmation.

Our units

Pad-mounted equipment

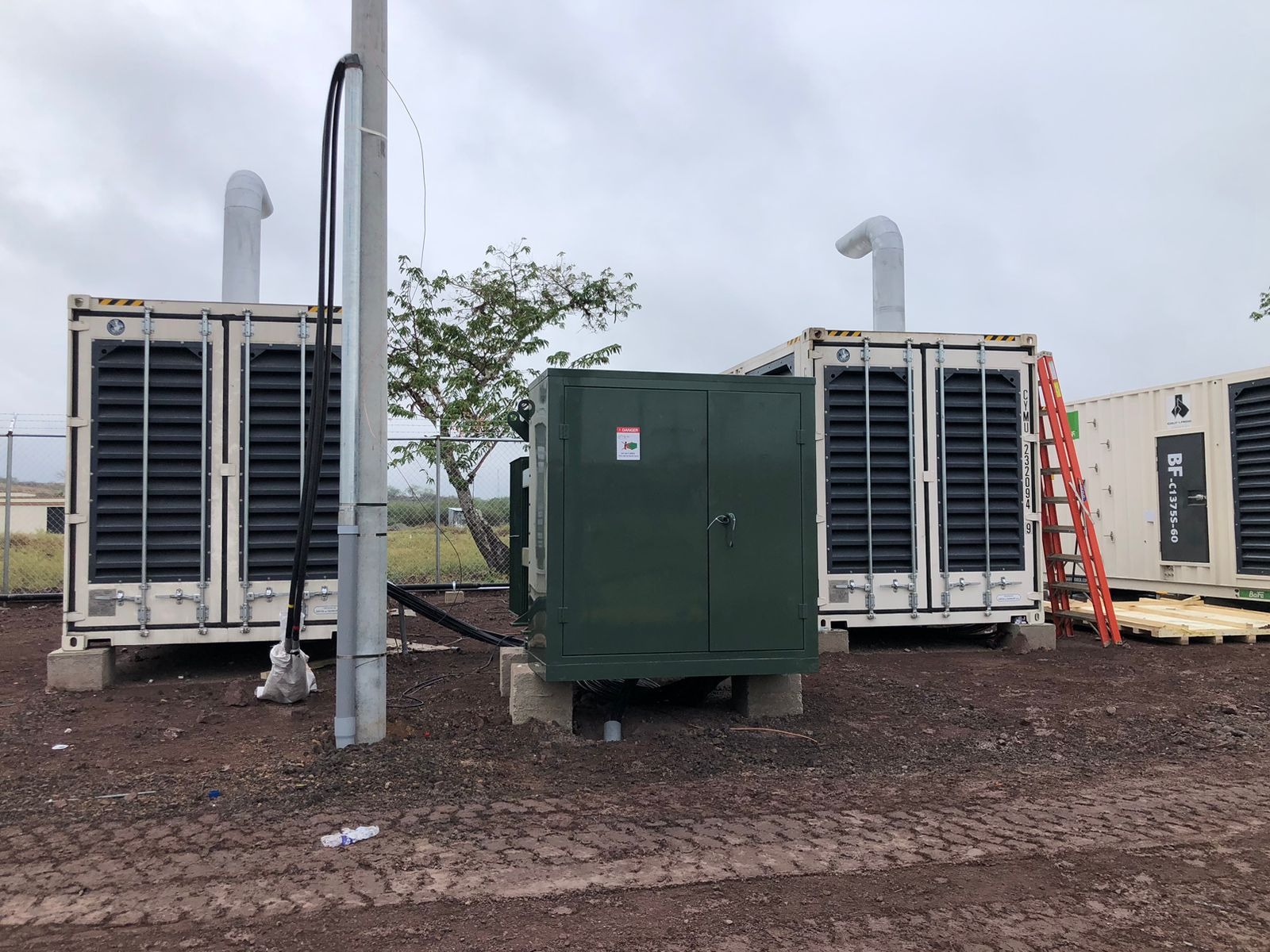

15 kV class pad-mounted transformer
15 kV class · pad-mounted

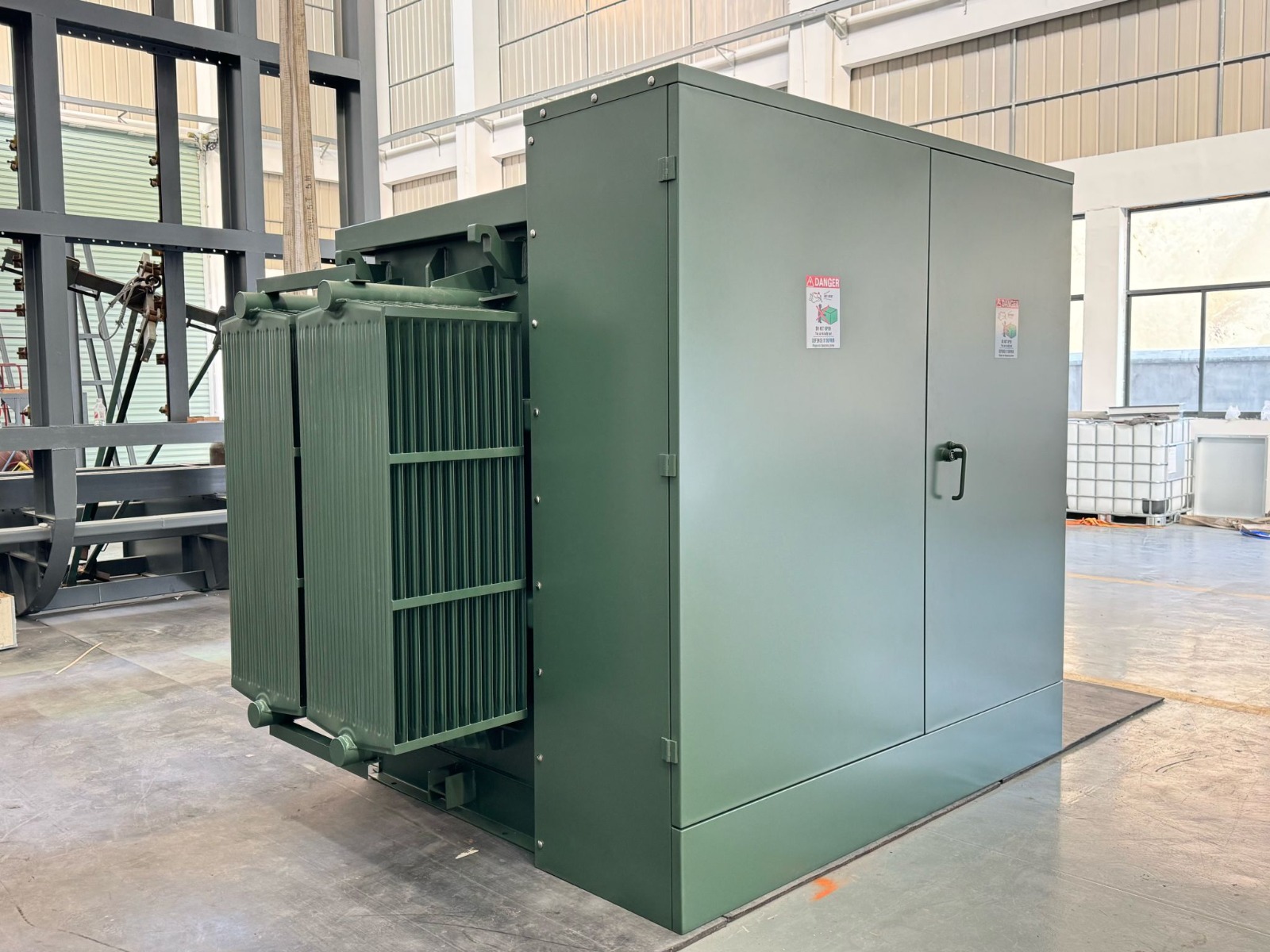

25 kV class pad-mounted transformer
25 kV class · pad-mounted
Specifications

MV Pad-Mounted ratings

Representative ratings below. Dimensions and weights are nominal and confirmed at quote. Loop-feed or radial-feed, mineral oil or FR3 fluid available on receipt of spec.

MV Pad-Mounted
kVA Voltage Class HV BIL Enclosure Dims (W×D×H) Weight Standard
30015 kV95 kV BILPad-mounted48" × 44" × 60"2,400 lbsIEEE C57.12.26
50015 kV95 kV BILPad-mounted52" × 48" × 64"3,200 lbsIEEE C57.12.26
75015 kV95 kV BILPad-mounted56" × 52" × 68"4,000 lbsIEEE C57.12.26
1,00015 kV95 kV BILPad-mounted60" × 56" × 72"5,000 lbsIEEE C57.12.26
1,50025 kV125 kV BILPad-mounted66" × 62" × 76"6,500 lbsIEEE C57.12.26
2,00025 kV125 kV BILPad-mounted72" × 66" × 80"8,000 lbsIEEE C57.12.26
2,50034.5 kV150 kV BILPad-mounted78" × 70" × 84"9,500 lbsIEEE C57.12.28
3,00034.5 kV150 kV BILPad-mounted84" × 74" × 88"11,000 lbsIEEE C57.12.28

Dead-front, liquid-filled. Loop-feed or radial-feed. Mineral oil or FR3 fluid. Additional sizes and voltage classes available on receipt of spec.

Construction

Design & build

Type
Dead-front, liquid-filled, pad-mounted
Configurations
Loop-feed or radial-feed
Fluid
Mineral oil or FR3 (less flammable)
Voltage Class
5 kV – 34.5 kV
BIL
95 kV – 150 kV
Standard
IEEE C57.12.26 / C57.12.28
Switching
Load-break bushings, oil-immersed switches
Accessories
Bushing wells, arresters, parking stands, drain valves
FAQ

Common questions

What is the lead time on MV pad-mounted transformers?
24–36 weeks from PO confirmation. Longer lead times apply to higher voltage classes and custom configurations.
What fluid options are available?
Mineral oil and FR3 (less-flammable fluid) are both available. Specify FR3 if the installation requires reduced fire risk or if local code requires it.
Do you support loop-feed and radial-feed configurations?
Yes. Both loop-feed (two-bushing primary) and radial-feed (one-bushing primary) are available. Specify your utility's required configuration at quote.
Are MV units UL listed?
Yes. All pad-mounted units are UL/cUL listed. IEEE C57.12.26 and C57.12.28 compliant. File number provided on request.
What warranty applies to pad-mounted transformers?
5 years from date of shipment covering windings, core, tank, and terminals. Full terms in our Terms & Conditions of Sale.

Send your spec for a firm quote within one business day

contact@veridianelectric.com · 718-973-0281

Include: kVA rating, primary and secondary voltage, enclosure type, quantity.

Budgetary price schedule available on request.
