Low-Voltage Dry-Type Transformers

UL-listed, any primary or secondary voltage. 5-year warranty, 12–14 week lead time from PO confirmation.

Every rating we supply, with pricing by specification: three-phase dry-type single-phase dry-type

As-built

Our units

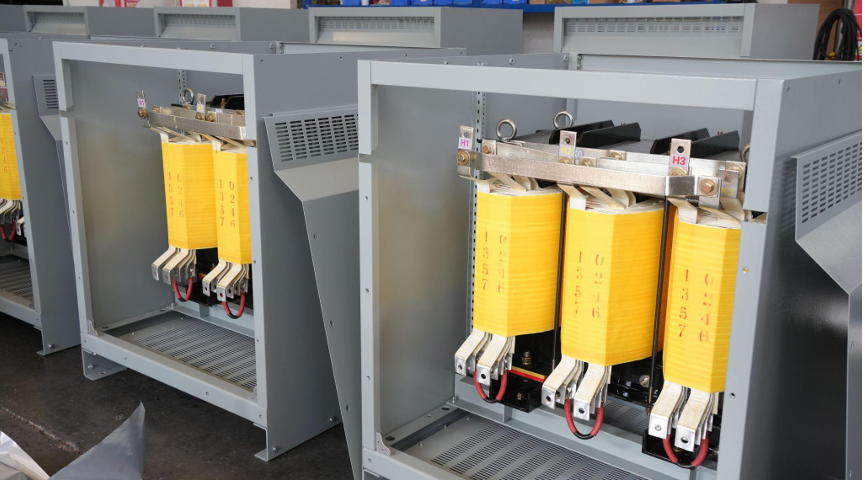

75kVA dry-type transformer, front access panel open

75kVA · 480V Delta - 208Y/120V · NEMA 3R

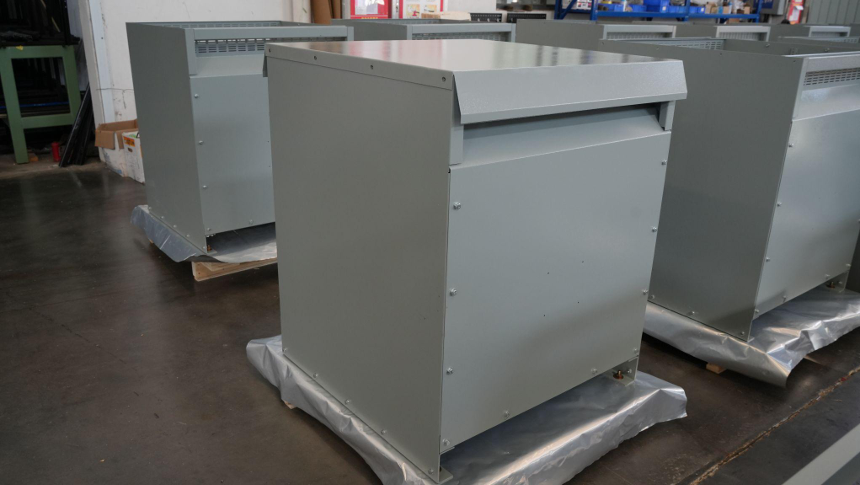

75kVA dry-type transformer secured on shipping pallet

75kVA · 480V Delta - 208Y/120V · NEMA 3R

75kVA dry-type transformer, alternate view 1

75kVA · 480V Delta - 208Y/120V · NEMA 3R

75kVA dry-type transformer, alternate view 2

75kVA · 480V Delta - 208Y/120V · NEMA 3R

Specifications

LV Dry-Type ratings

Representative ratings below. Dimensions and weights are nominal and confirmed at quote. Any primary or secondary voltage combination is available on receipt of spec.

LV Dry-Type

Every rating is listed with its primary and secondary voltage, winding and mounting. Pick one to request pricing.

Additional sizes available. Inquire with your specific kVA and voltage requirements. Aluminum winding standard. Copper winding and custom voltages quoted on receipt of spec. 150°C rise, 220°C Class H insulation.

Construction

Design & build

Standard

Aluminum windings · copper optional

Temperature Rise

150°C

Insulation

220°C Class H

Enclosure

NEMA 1 (indoor) / NEMA 3R (outdoor)

Taps

2 × 2.5% below nominal

Efficiency

DOE 2016 compliant

Listing

UL/cUL listed · file number provided on request

FAQ

Common questions

What is the lead time on LV dry-type transformers?

12–14 weeks from PO confirmation. Lead time starts when the deposit is received and the factory order is placed.

What voltages can you build?

Any primary or secondary voltage combination. Common configurations are 480V Delta - 208Y/120V, 480V Delta - 480V Delta, and 600V Delta - 208Y/120V. Send your spec for a firm quote.

Are your units UL listed?

Yes — dry-type units are UL/cUL listed. The UL file number is provided on request and included with every submittal package.

Do you offer copper windings?

Yes. Copper windings are available on request at a premium. Standard build is aluminum with copper optional.

What warranty do you offer?

5 years from date of shipment covering windings, core, tank, and terminals. Full terms are in our Terms & Conditions of Sale.

Send your spec for a firm quote within one business day

contact@veridianelectric.com · 718-973-0281

Include: kVA rating, primary and secondary voltage, enclosure type, quantity.

Budgetary price schedule available on request.
